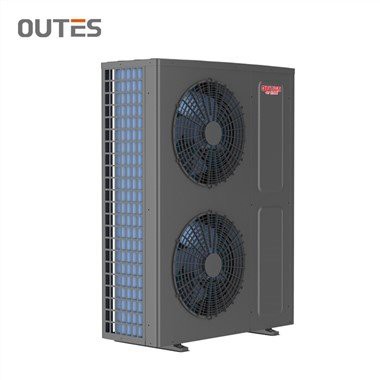

On Off Monoblock Air Source Heat Pump
OUTES ON OFF Monoblock Air Source HEAT PUMP saves energy by transferring high-level energy from a low-level source air to a high-level heat source function as heating, cooling, and produce domestic hot water.
Description
OUTES ON OFF Monoblock Air Source HEAT PUMP saves energy by transferring high-level energy from a low-level source air to a high-level heat source function as heating, cooling, and produce domestic hot water. The air energy heat pump, as a system device that efficiently collects heat and transmits power, can convert consumed energy into 4-6 times more heat energy than electric heat, conserving energy and being ecologically beneficial.
Heating capacity range: 8.5kw-18.5kw
FUNCTION
1.HEATING/COOLING/DHW (domestic hot water) in one solution for HC series.
2.SMART DEFROSTING, STERILIZATION, DHW&AC ANTI FREEZE
3.High efficiency
Advantage
At any time of day, free heat source is available.
Investment costs are quite modest.
Cascade function allows for expansion.
There is no requirement for formal authorisation.
It's appropriate for both new construction and renovation projects.
Retrofitting is an option.
Environmental friendly
Specifications
Model | AHb19E | ||
Power Supply | / | 220-240V/1N/50Hz | |
Heating | Rated Heating Capacity | kW | 18.5 |
Heated Input Power | kW | 4.64 | |
Cooling | Rating Cooling Capacity | kW | 13.4 |
Cooling Input Power | kW | 5.2 | |
Hot Water | Rated Heating Capacity | kW | 22.4 |
Water Yield | L/H | 482 | |
Rated Input Power | kW | 4.85 | |
Outdoor Unit | Rated Input Power | kW | 6.9 |
Ambient Temperature | ℃ | -25~49 | |
Refrigerant | / | R410A | |
Max. Water Outlet Temp. | ℃ | 55 | |
Compressor Brand | / | Copeland/Scroll | |
Compressor Type | / | ON/OFF | |
Water Side Heat Exchanger | / | Plate | |
Rated Water Flow | m³/h | 3.18 | |
Noise | dB(A) | ≤63 | |
SCOP | W/W | 3.69 | |
ERP Level (35℃) | / | A+ | |
Net Weight | kg | 160 | |
Net Dimensions(L×W×H) | mm | 1036×406×1410 | |
Packing Dimensions(L×W×H) | mm | 1086×446×1490 | |
Container Loading(20'/40'/40'HC) | Sets | 27/54/54 | |
Features
About OUTES
OUTES was established in 2 0 0 6 with an industry park of 500,000m2, specializing in sales, R&D and manufacturing air conditioner, Cooling & Heating heat pump, Hot Water heat pump, Swimming Pool heat pump, Commercial heat pump, Fan Coils, Air Ventilation Unit, Water Purification Equipment and Pressure Water Tank.
OUTES has reputation in domestic market. With 2000 distributors, 1000 After-sales Service Center and 10 local warehouse.
