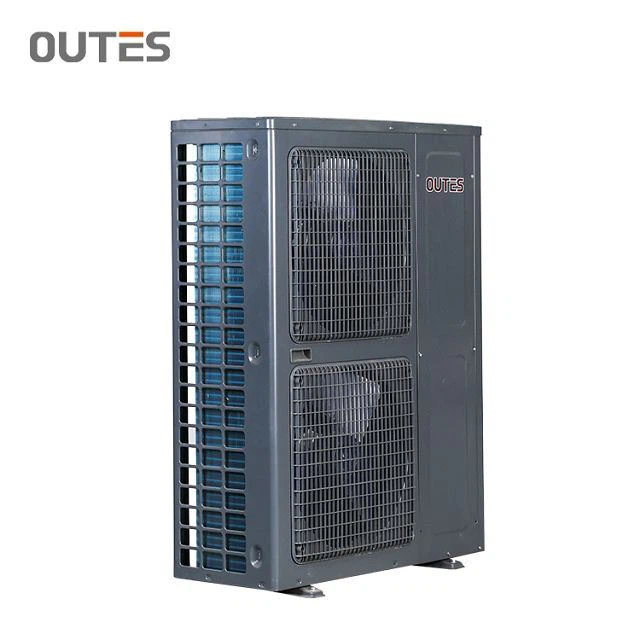

Monoblock Inverter Dhw Air Source Heat Pump
OUTES Monoblock INVERTER DHW Air Source HEAT PUMP are a cost-effective and environmentally friendly heating option. The Air Source Heat Pump takes sustainable solar energy from the air and converts it into enough heat to meet all of your heating and hot water needs.
Description
OUTES Monoblock INVERTER DHW Air Source HEAT PUMP are a cost-effective and environmentally friendly heating option. The Air Source Heat Pump takes sustainable solar energy from the air and converts it into enough heat to meet all of your heating and hot water needs. Unlike typical fossil fuel and biomass systems, which create heat by burning a fuel, Air Source Heat Pumps work by transporting heat held in the air into the structure. This implies that Air Source Heat Pumps don't have to work as hard to generate heat, and as a result, they're much more efficient than previous techniques.
Heating capacity range 10kw-28KW
FUNCTION

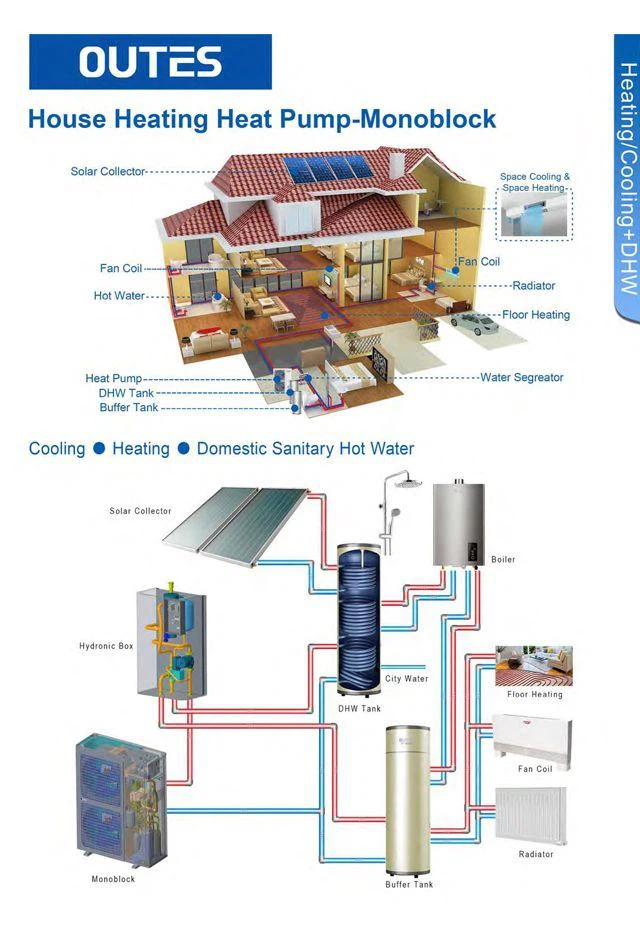

1.Space HEATING/COOLING/ domestic hot water in one solution for HC series.
2.SMART DEFROSTING, STERILIZATION, DHW&AC ANTI FREEZE
3.HIGH EFFICIENCY
Advantage
A free heat source is available at all times of the day.
The investment costs are quite low.
Expansion is possible thanks to the cascade function.
It is not necessary to obtain formal authorization.
Simple installation.
It's suitable for new construction as well as renovation jobs.
Retrofitting is a possibility.
Environmentally friendly
Specifications
Model |
| AHb14D | AHb16D | AHb18D | |
Power Supply | / | 220V~240V/50Hz | 220V~240V/50Hz | 220V~240V/50Hz | |
Heating*(A7℃/W35℃) | Max. Heating Capacity | kW | 14.0 | 16.0 | 17.5 |
Heating Input Power | kW | 3.33 | 3.95 | 4.43 | |
Heating Capacity Min./Max. | kW | 5.4/14 | 6.4/16 | 7.17/17.5 | |
Cooling(A35℃/W7℃) | Max. Cooling Capacity | kW | 10.0 | 12.0 | 14.0 |
Cooling Input Power | kW | 3.50 | 4.60 | 5.76 | |
Cooling Capacity Min./Max. | kW | 4.11/10 | 5.1/12 | 5.8/14 | |
Refrigerant | / | R410A | R410A | R410A | |
Max. Water Outlet Temperature | ℃ | 55℃ | 55℃ | 55℃ | |
Range of Working Operation | ℃ | -25~43 | -25~43 | -25~43 | |
Compressor(Brand/Type) | / | GMCC/Rotary | GMCC/Rotary | GMCC/Rotary | |
Heat Exchanger | Type | Plate | Plate | Plate | |
Rated Water Flow | m3/h | 2.41 | 2.75 | 3.01 | |
ERP Level(35℃) | / | A++ | A++ | A++ | |
Noise | dB(A) | 60 | 62 | 62 | |
Net Weight | kg | 150 | 160 | 160 | |
Net Dimension(L×W×H) | mm | 1036×406×1410 | 1036×406×1410 | 1036×406×1410 | |
Packing Dimension((L×W×H) | mm | 1086×446×1490 | 1086×446×1490 | 1086×446×1490 | |
Loading Quantity(20'/40'/40'H) | Sets | 27/54/54 | 27/54/54 | 27/54/54 | |
Features
About OUTES
OUTES was established in 2 0 0 6 with an industry park of 500,000m2, specializing in sales, R&D and manufacturing air conditioner, Cooling & Heating heat pump, Hot Water heat pump, Swimming Pool heat pump, Commercial heat pump, Fan Coils, Air Ventilation Unit, Water Purification Equipment and Pressure Water Tank.
OUTES has reputation in domestic market. With 2000 distributors, 1000 After-sales Service Center and 10 local warehouse.
Our Products
Our Lab and Qualification
Factory View
Hot Tags: monoblock inverter dhw air source heat pump, China, suppliers, manufacturers, factory, customized, wholesale, buy
