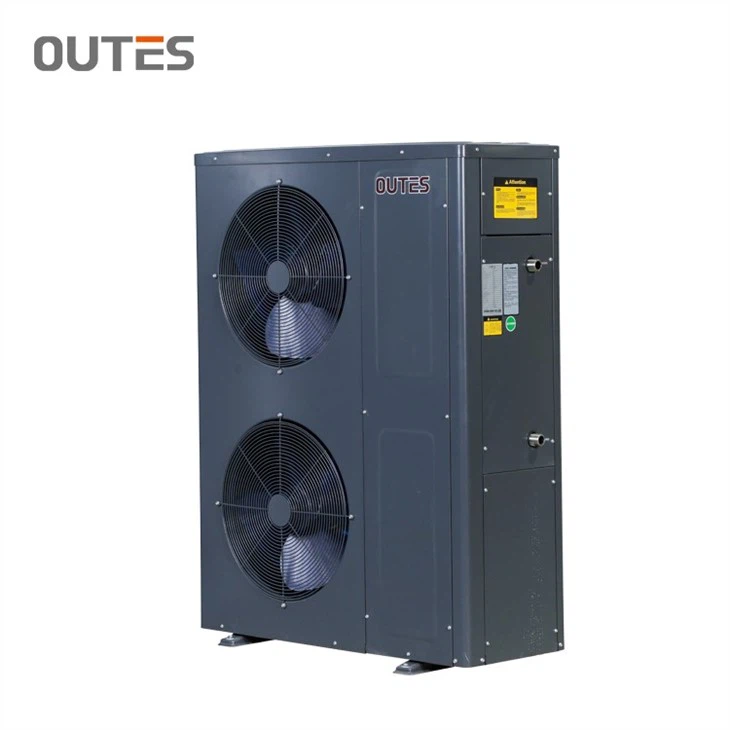

Inverter Air Source Heat Pump

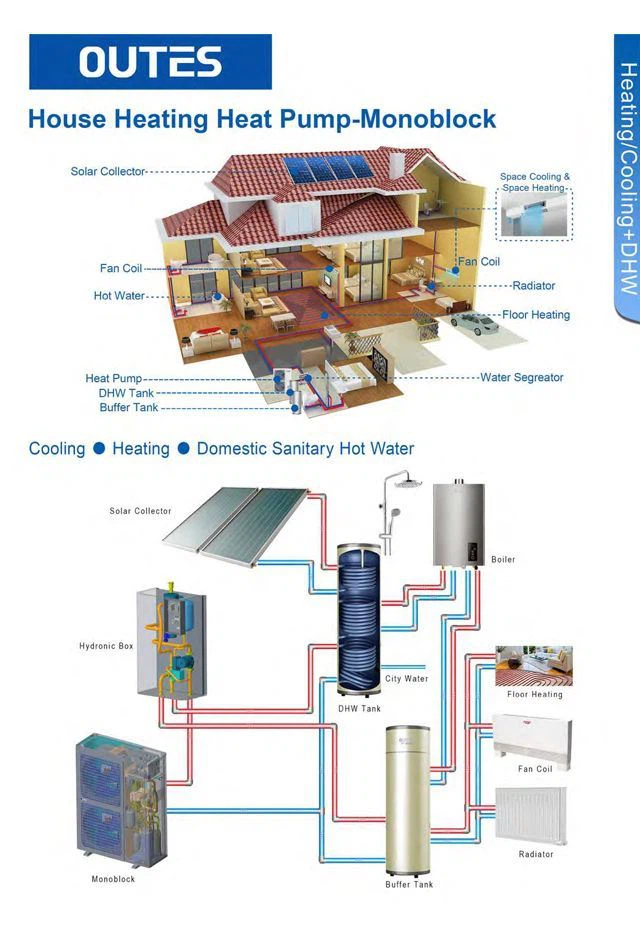

OUTES Inverter Air Source HEAT PUMP Using an air source heat pump, heat from the outside air is transferred to an inside room (ASHP). Wet central heating systems heat radiators and provide hot water to the home.
Description
OUTES Inverter Air Source HEAT PUMP Using an air source heat pump, heat from the outside air is transferred to an inside room (ASHP). Wet central heating systems heat radiators and provide hot water to the home. Heat pumps take heat and transfer it to a different medium, similar to freezers. Air to water heat pumps are heat pumps that absorb heat from the outside air and send it to your central heating system to provide hot water, radiators, or underfloor heating in an indoor environment (or all three).Heating capacity range 10kw-28KW
FUNCTION
1.Space HEATING /Cooling/SANITARY WATER in one solution for HC series.
2.SMART DEFROSTING, STERILIZATION, DHW&AC ANTI FREEZE
3.HIGH EFFICIENCY
10 Pros
1.Low carbon footprint
2.Save money on energy bills
3.Space heating and cooling, hot water
4.High SCOP
5.Easy installation
6.Long Lifespan
Specifications
Model |
| AHb10D | AHb12D | |
Power Supply | / | 220V~240V/50Hz | 220V~240V/50Hz | |
Heating*(A7℃/W35℃) | Max. Heating Capacity | kW | 10.0 | 12.0 |
Heating Input Power | kW | 2.48 | 2.73 | |
Heating Capacity Min./Max. | kW | 4.2/10 | 5.0/12 | |
Cooling(A35℃/W7℃) | Max. Cooling Capacity | kW | 7.0 | 9.0 |
Cooling Input Power | kW | 2.80 | 3.05 | |
Cooling Capacity Min./Max. | kW | 2.92/7 | 3.6/9 | |
Refrigerant | / | R410A | R410A | |
Max. Water Outlet Temperature | ℃ | 55℃ | 55℃ | |
Range of Working Operation | ℃ | -25~43 | -25~43 | |
Compressor(Brand/Type) | / | GMCC/Rotary | GMCC/Rotary | |
Heat Exchanger | Type | Plate | Plate | |
Rated Water Flow | m3/h | 1.72 | 2.06 | |
ERP Level(35℃) | / | A++ | A++ | |
Noise | dB(A) | 60 | 60 | |
Net Weight | kg | 85 | 85 | |
Net Dimension(L×W×H) | mm | 1036×406×740 | 1036×406×740 | |
Packing Dimension((L×W×H) | mm | 1086×446×820 | 1086×446×820 | |
Loading Quantity(20'/40'/40'H) | Sets | 54/108/162 | 54/108/162 | |
Features
About OUTES
OUTES was established in 2 0 0 6 with an industry park of 500,000m2, specializing in sales, R&D and manufacturing air conditioner, Cooling & Heating heat pump, Hot Water heat pump, Swimming Pool heat pump, Commercial heat pump, Fan Coils, Air Ventilation Unit, Water Purification Equipment and Pressure Water Tank.
OUTES has reputation in domestic market. With 2000 distributors, 1000 After-sales Service Center and 10 local warehouse.
Our Products
Our Lab and Qualification
Factory View
Hot Tags: inverter air source heat pump, China, suppliers, manufacturers, factory, customized, wholesale, buy
