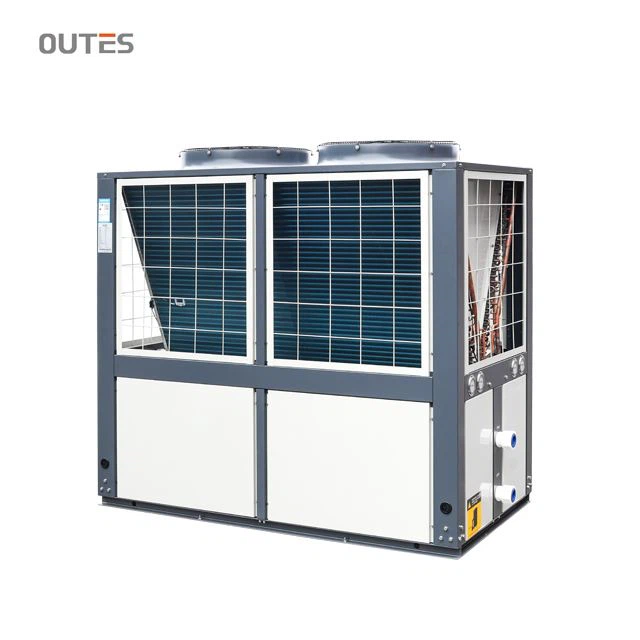

Commercial Evi Heat Pump Water Heater
OUTES Commercial R410A EVI HEAT PUMP Water Heater applicable for room heating and sanitary hot water supply in cold climate with big scale heating and hot water solution, keep working at -25℃ low ambient temp for commercial use.
Description
OUTES Commercial R410A EVI HEAT PUMP Water Heater applicable for room heating and sanitary hot water supply in cold climate with big scale heating and hot water solution, keep working at -25℃ low ambient temp for commercial use. Humanized settings, intelligent adjustment, multi-mode appointment switching, real-time monitoring and diagnostics, intelligent early warning processing, and unique intelligent self-testing and quick repair functions are all included in the commercial EVI air source heat pump.
EVI Special Compressor
1.Special floating design for high pressure compressor.
2.Fixed vortex disk and dynamic exhaust valve-specially design for high pressure difference.
3.EVI control the safety exhaust temperature.
Specifications
Model | / | AW34Ee | AW42Ee | AW70Ee | AW85Ee | AW100Ee | AW160Ee | AW180Ee |
Power Supply | / | 380V/3N/50Hz | 380V/3N/50Hz | 380V/3N/50Hz | 380V/3N/50Hz | 380V/3N/50Hz | 380V 3N - 50HZ | 380V 3N - 50HZ |
Nominal Heating Capacity | kW | 31.6 | 38 | 68 | 78 | 92 | 156 | 180 |
Rated Input Power | kW | 8.08 | 9.1 | 16.8 | 19 | 21.6 | 38.0 | 42.0 |
COP | W/W | 3.91 | 4.18 | 4.05 | 4.11 | 4.26 | 4.11 | 4.29 |
Rated Working Current | A | 15.3 | 17.3 | 31.91 | 36.1 | 41.0 | 72.2 | 79.8 |
Max Input Power | kW | 11 | 13.5 | 29.23 | 27 | 29.7 | 52.3 | 57.8 |
Max Working Current | A | 26.5 | 37 | 68 | 74 | 82.7 | 136.0 | 150.0 |
Max Water Temperature | ℃ | 55 | 55 | 55 | 55 | 55 | 55 | 55 |
Water Yield | L/h | 592 | 711 | 1273 | 1460 | 1722 | 2921 | 3370 |
Rated Circulating Water | m3/h | 5.4 | 6.5 | 11.7 | 13.4 | 15.8 | 26.8 | 31.0 |
Water Pressure Loss | kPa | 60 | 55 | 60 | 70 | 70 | 70 | 70 |
Circulating Pipe Diameter | / | DN40 | DN40 | DN50 | DN65 | DN65 | DN65 | DN80 |
Max.Air Exhaust/ Absorb Working Pressure | MPa | 4.2/1.5 | 4.2/1.5 | 4.2/1.5 | 4.2/1.5 | 4.2/1.5 | 4.2/1.5 | 4.2/1.5 |
Noise | dB(A) | ≤64 | ≤68 | ≤68 | ≤70 | ≤70 | ≤72 | ≤73 |
Refrigerant | / | R410A | R410A | R410A | R410A | R410A | R410A | R410A |
Compressor Type | / | Scroll | Scroll | Scroll | Scroll | Scroll | Scroll | Scroll |
Compressor Qty | Pcs | 2 | 2 | 2 | 2 | 2 | 4 | 4 |
Net Weight | kg | 350 | 400 | 690 | 710 | 810 | 1250 | 1540 |
Net Dimension(L×W×H) | mm | 1730×950×1640 | 1110×900×1800 | 2042×1170×2128 | 2042×1170×2128 | 2042×1170×2128 | 2200×1450×2220 | 2042×1850×2220 |
Packing Dimension(L×W×H) | mm | 1810×1010×1720 | 1190×960×1900 | 2120×1220×2300 | 2120×1220×2300 | 2120×1220×2300 | 2270×1470×2400 | 2112×1870×2400 |
About OUTES
OUTES was established in 2 0 0 6 with an industry park of 500,000m2, specializing in sales, R&D and manufacturing air conditioner, Cooling & Heating heat pump, Hot Water heat pump, Swimming Pool heat pump, Commercial heat pump, Fan Coils, Air Ventilation Unit, Water Purification Equipment and Pressure Water Tank.
OUTES has reputation in domestic market. With 2000 distributors, 1000 After-sales Service Center and 10 local warehouse.
